MacchiatoBin Project

The MacchiatoBin does not have standard ATX connections for LEDs and Buttons, the ioext board is attached to the J12 header on the MacchiatoBin and offers several LED-suitable GPIOs:

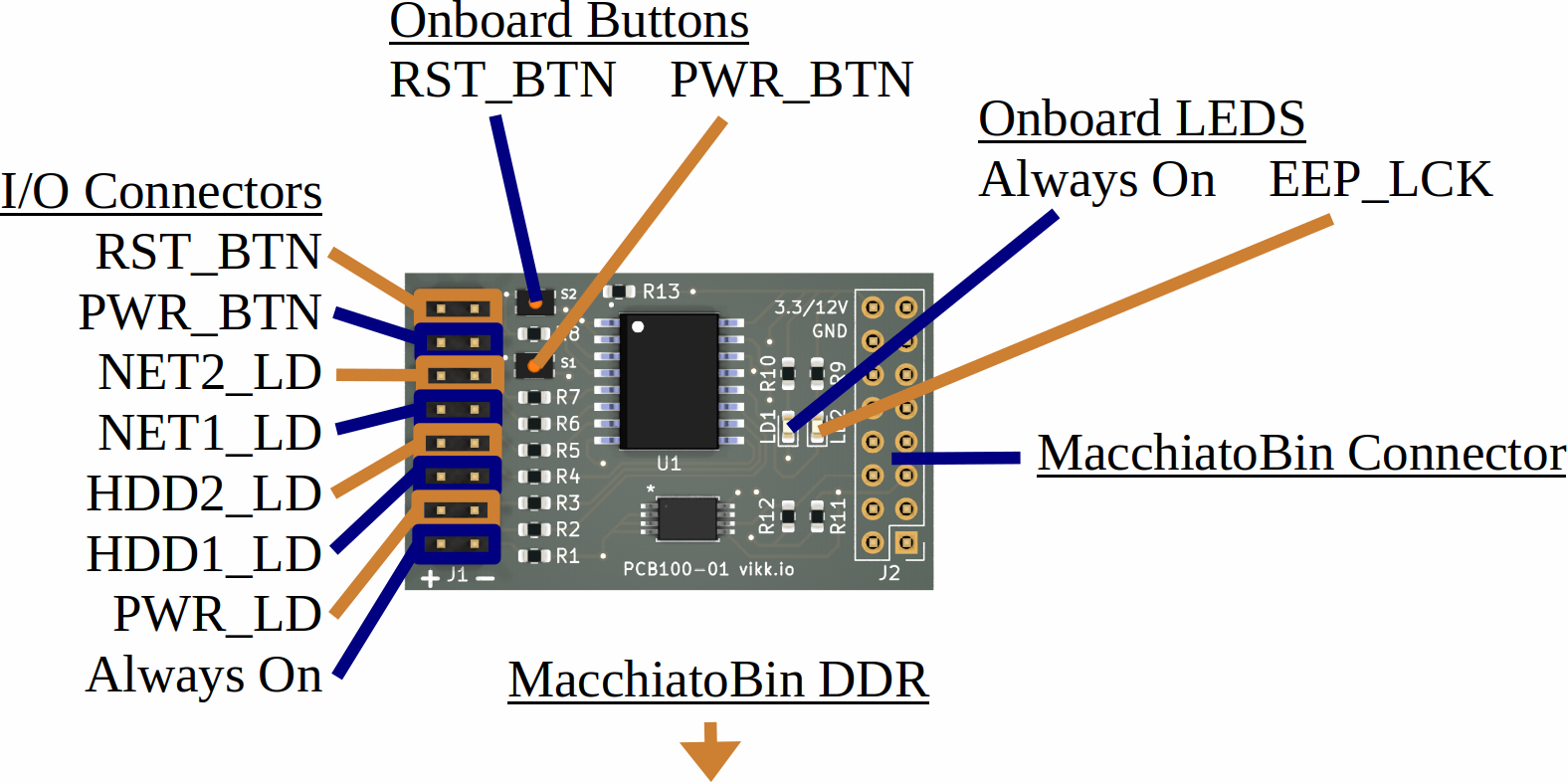

Connections

• Always on pins depending on use case
• PWR_LD: Configurable LED indicating power state
• NET1_LD: Configurable LED indicating network activity
• NET2_LD: Configurable LED indicating network activity
• HDD1_LD: Configurable LED indicating disk activity
• HDD2_LD: Configurable LED indicating disk activity
• PWR_BTN: Configurable button for power off
• RST_BTN: Configurable button for soft reboot
• EEP_LCK: Configurable to lock EEPROM, for future use
• EEPROM: 4k for future use

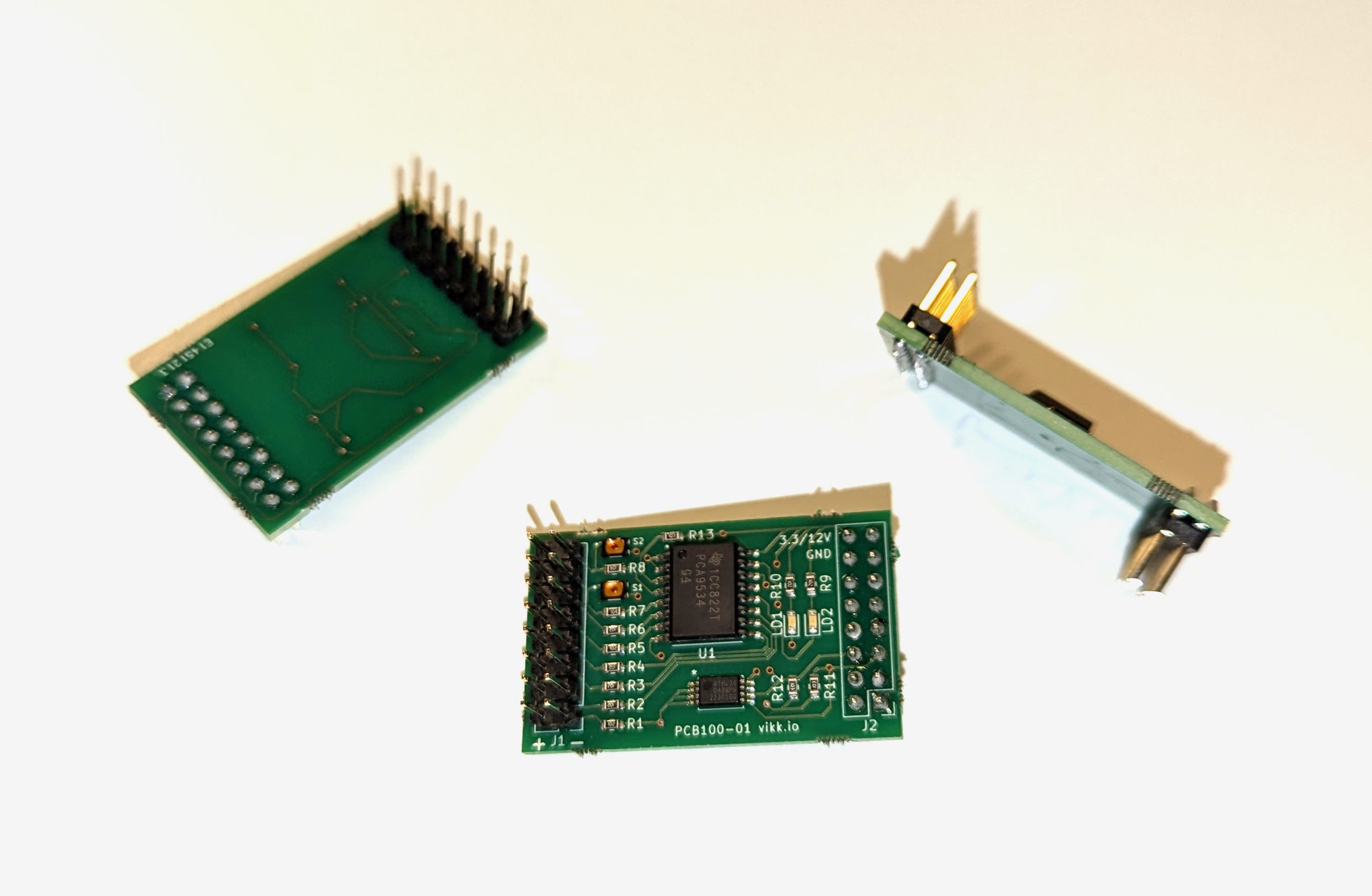

Final product

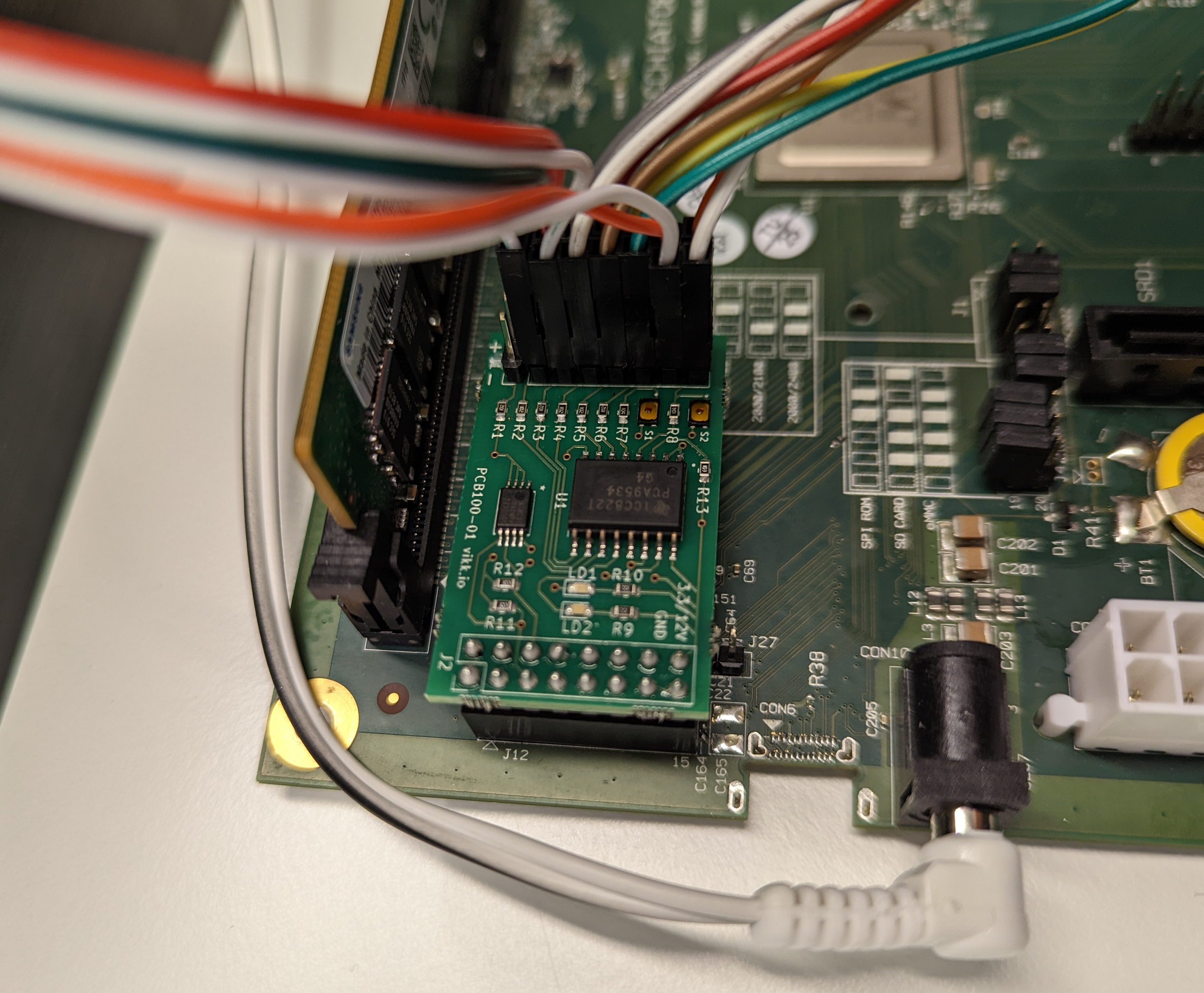

Mounted on MacchiatoBin with connectors
